R&S Manufacturing, Inc is a leading manufacturer of rolling service doors, counter doors, and aluminum grilles. R&S doors are manufactured to meet the need for secure and effective space saving closures; they’re endurance tested while providing outstanding economy and value.

A variety of mountings, operation methods, materials, and finish options are available. Contact us today to have a free on site evaluation of your service doors.

Product variations provide solutions for specific requirements such as:

  • Weather and Temperature Control
  • Ventilation and Visibility
  • Access and Egress
  • Fire Protection and Smoke Control
  • Manual or Motorized

Custom engineering capabilities allow many standard R&S Manufacturing, Inc rolling door products to be adapted for special uses including:

  • Combination Door and Grilles (for ventilation and visibility)
  • Crane Doors (for T-shaped openings)
  • Aircraft Hanger Tail-Section Doors
  • Cabinet Enclosures (with curved or inclined guides)
  • Horizontal Covers (over openings in floors or ceilings)

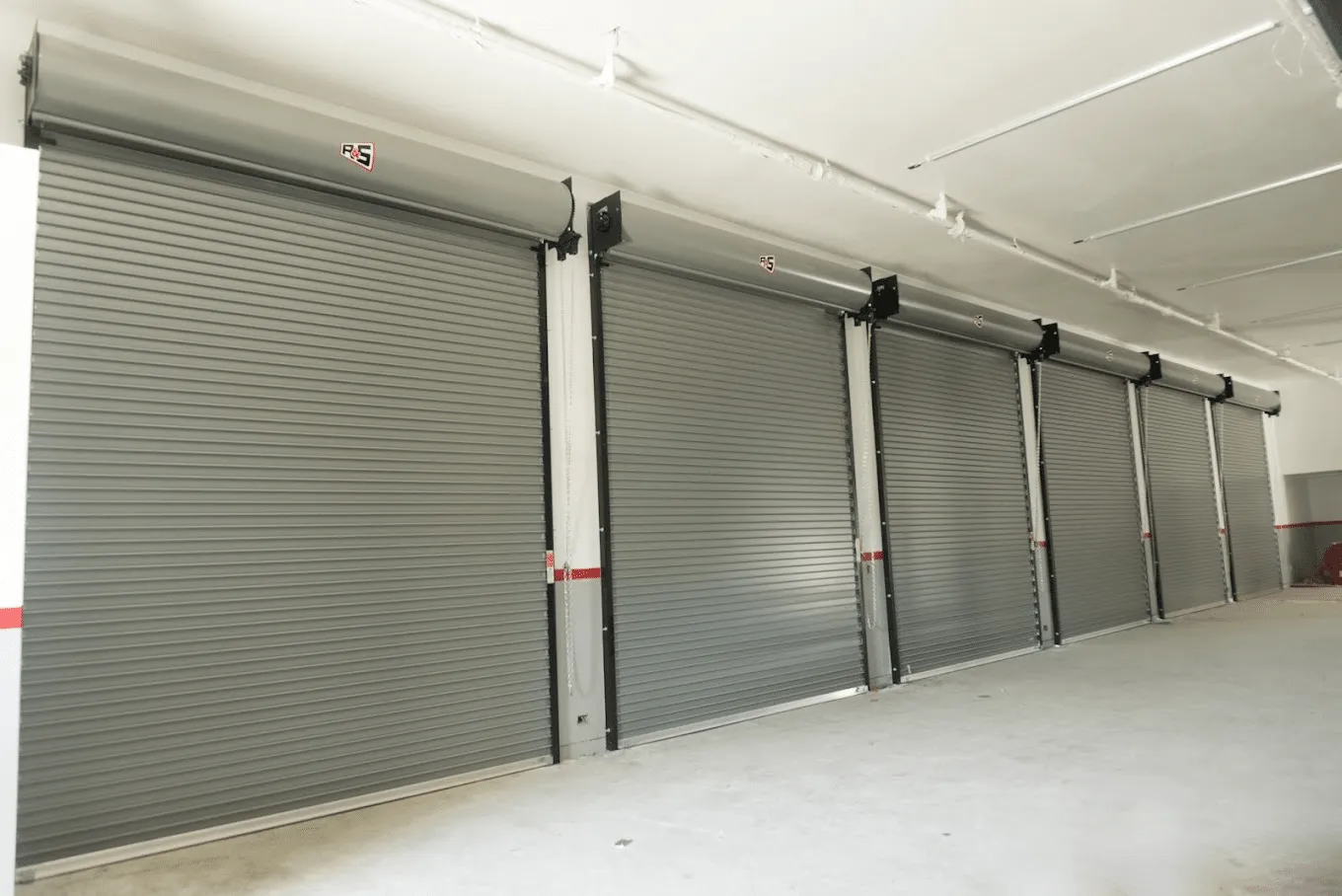

Rolling Service Doors

For over 60 years R&S has been manufacturing steel rolling doors. A full line of service doors including weather stripped, insulated and aluminum is offered. Many options are available including perforated slats, vision lights, grille sections, pass door inclusion, high cycle performance or increased wind resistance. No matter what your unique service door application or environment calls for, R&S can provide an appropriate solution.

Standard Duty Doors

R&S Standard Duty Rolling Steel Service Doors are the ideal solution when you need an economical yet reliable solution to protect an area from entry or elements.

Galvanized steel slats interlock to create a robust and solid curtain that rolls up inside a hood, easily accommodating spaces with limited headroom or sideroom, and affording many years of maintenance free performance. Perfect for lower cycle applications where the door and guides are not likely to be struck by people, vehicles, or other material.

  • Curtain designed to withstand windload up to 20PSF or 80MPH
  • Robust construction provides a minimum of 20,000 cycles
Standard Features
  • Steel Channel Guides
  • Aluminum Extruded Bottom Bar
  • 24 gauge curtain up to 16′ wide – gauge upgrade available
  • 24 gauge hood standard – upgrades of gauge available
Options
  • Perforated Slats: 3/64″ diameter holes on 5/64″ staggered centers in type 25 slats provide 30% open area for ventilation and visibility throughout the curtain.
  • Vision Lites: Single or multiple 3 1/2″ X 3/4″ wide cutouts, open for ventilation or covered with acrylic
  • Powder Coat Finish: Available on all exposed surfaces, powder coating is a durable and decorative finish for steel or aluminum surfaces that provides longer life and requires less maintenance than a standard finish. Available in a variety of colors.
  • Galvanized Finish: Hot dip Galvanizing available on footpiece, guides and brackets
  • Intermediate Grille: Partial grille curtain connecting type 30 slats above and below
  • Sloped Footpiece: For door openings on a slope
  • Cylinder Locks: Installed on footpiece or guide.
  • Pass Door: 3′-0″ x 7′-0″ x 1 3/4″ thick hollow metal grey primed (black optional) door in a steel frame for access through the curtain when closed. Standard hardware includes lever lock with optional deadbolt; handicap option, custom sizes, windows and special hardware available.
  • Tubular Motor Operator: Motors completely contained within the barrel can be provided for standard duty service doors up to 196 sq ft  in limited usage applications. Only the manual crank override is visible outside the bracket. The units are available in 115 volt/single phase with constant contact one button or key switch control. They can also be provided with a low voltage controller when options such as a 3 button station, reversing edge or timer are required.
Heavy Duty Doors

R&S Heavy Duty Rolling Steel Service Doors are the ideal solution when you need high security and durability to protect an area from entry or elements.

Galvanized steel slats interlock to create a robust and solid curtain that rolls up inside a hood, easily accommodating spaces with limited headroom or sideroom, and affording many years of maintenance free performance. R&S Heavy Duty Rolling Steel Doors are robust in many ways, last more cycles as well as hold up better to physical impact or wind.

  • Customizable to meet virtually all of your project needs through many upgrades, slat profiles and options
  • Curtain designed to withstand windload exceeding 20 PSF or 80MPH
Standard Features
  • Steel, 3 Angle Guides
  • Aluminum Extruded Bottom Bar up to 16′ wide –  upgrade to steel angle available
  • 22 gauge curtain up to 16′ wide – gauge upgrade available
  • 24 gauge hood standard – upgrades of gauge available
  • Designed to withstand 20PSF or 80MPH winds
Options
  • Increased Windload Capacity: Curtain designs to withstand windloads exceeding 20PSF
  • High Cycle Construction: Designs to provide up to 150,000 operating cycles or maximum possible in design.
  • Perforated Slats: 3/64″ diameter holes on 5/64″ staggered centers in type 25 slats provide 30% open area for ventilation and visibility throughout the curtain.
  • Vision Lites: Single or multiple 3″ wide cutouts, open for ventilation or covered with acrylic.
  • Powder Coat Finish: Available on all exposed surfaces, providing a durable and decorative finish that provides longer life and requires less maintenance than a standard finish. Available in a variety of colors.
  • Galvanized Finish: Hot dip Galvanizing available on footpiece, guides and brackets
  • Intermediate Grille: Partial grille curtain connecting slats above and below.
  • Sloped Footpiece: For door openings on a slope
  • Cylinder Locks: Key or finger-throw cylinder installed on footpice for easy secure locking.
  • Pass Door: 3′-0″ x 7′-0″ x 1-3/4″ thick hollow metal grey primed (black optional) door in a steel frame for access through the curtain when closed. Standard hardware includes lever lock with optional deadbolt; accessibility option, custom sizes, windows and special hardware available.
  • Tubular Motor Operator: Motors completely contained within the barrel can be provided for heavy duty service doors up to 144 sq ft  in limited usage applications. Only the manual crank override is visible outside the bracket. The units are available in 115 volt/single phase with constant contact one button or key switch control. They can also be provided with a low voltage controller when options such as a 3 button station, reversing edge or timer are required.
Thermal Guard Doors

When an application requires weather protection, the R&S Thermal Guard Rolling Service Door is the right choice. Constructed using laid-in-place polyurethane insulation, providing an insulation value of R6, the curtain is an effective barrier against the elements. Rain, dust and wind are kept at bay by vinyl weatherstripping at the footpiece, guides and hood.

Galvanized steel slats interlock to create a robust and solid curtain that rolls up inside a hood, easily accommodating spaces with limited headroom or sideroom, and affording many years of maintenance free performance.

  • Designed for openings up to 30′ wide and 28′ high with a minimum 22 gauge exterior slat and a 24 gauge back slat
  • Customizable to meet virtually all of your project needs through many upgrades, slat profiles and options
  • Curtain designed to withstand windload exceeding 20 PSF or 80MPH
Standard Features
  • Insulation Value:  R-Value: 6.0; • U-Factor: 0.17
  • Steel, 3 Angle Guides
  • Aluminum Extruded Bottom Bar up to 16′ wide –  upgrade to steel angle available
  • 22 gauge curtain up to 16′ wide – gauge upgrade available
  • 24 gauge hood standard – upgrades of gauge available
  • Designed to withstand 20PSF or 80MPH winds
Options
  • Increased Windload Capacity: Curtain designs to withstand windloads exceeding 20PSF
  • High Cycle Construction: Designs to provide up to 150,000 operating cycles or maximum possible in design.
  • Vision Lites: Single or multiple 3″ wide cutouts, covered with acrylic.
  • Powder Coat Finish: Available on all exposed surfaces, powder coating is a durable and decorative finish for steel or aluminum surfaces that provides longer life and requires less maintenance than a standard finish. Available in a variety of colors. Consult factory for color selection, applications and limitations.
  • Galvanized Finish: Hot dip Galvanizing available on footpiece, guides and brackets
  • Sloped Footpiece: For door openings on a slope
  • Cylinder Locks: Installed on footpiece or guide.
  • Pass Door: 3′-0″ x 7′-0″ x 1-3/4″ thick hollow metal grey primed (black optional) door in a steel frame for access through the curtain when closed; frame is hinged to guide and swings clear to allow use of entire door opening when curtain is raised; Standard hardware includes lever lock with optional deadbolt; handicap option, custom sizes, windows and special hardware available.
Climate Guard Doors

When an application requires protection against the elements, the R&S Climate Guard Rolling Steel Service Door is the solution. Rain, dust and wind are kept at bay by vinyl weatherstripping at the footpiece, guides and hood.

Galvanized steel slats interlock to create a robust and solid curtain that rolls up inside a hood, easily accommodating spaces with limited headroom or sideroom, and affording many years of maintenance free performance.

  • Designed for openings up to 30′ wide and 30′ high
  • Customizable to meet virtually all of your project needs through many upgrades, slat profiles and options

Curtain designed to withstand windload exceeding 20 PSF or 80MPH

Standard Features
  • Steel, 3 Angle Guides
  • Aluminum Extruded Bottom Bar up to 16′ wide –  upgrade to steel angle available
  • 22 gauge curtain up to 16′ wide – gauge upgrade available
  • 24 gauge hood standard – upgrades of gauge available
  • Designed to withstand 20PSF or 80MPH winds
Options
  • Increased Windload Capacity: Curtain designs to withstand windloads exceeding 20PSF
  • High Cycle Construction: Designs to provide up to 150,000 operating cycles or maximum possible in design.
  • Vision Lites: Single or multiple 3″ wide cutouts, covered with acrylic.
  • Powder Coat Finish: Available on all exposed surfaces, powder coating is a durable and decorative finish for steel or aluminum surfaces that provides longer life and requires less maintenance than a standard finish. Available in a variety of colors.
  • Galvanized Finish: Hot dip Galvanizing available on footpiece, guides and brackets
  • Sloped Footpiece: For door openings on a slope
  • Cylinder Locks: Installed on footpiece or guide.
  • Pass Door: 3′-0″ x 7′-0″ x 1-3/4″ thick hollow metal grey primed (black optional) door in a steel frame for access through the curtain when closed; frame is hinged to guide and swings clear to allow use of entire door opening when curtain is raised; Standard hardware includes lever lock with optional deadbolt; handicap option, custom sizes, windows and special hardware available.
  • Tubular Motor Operator: Motors completely contained within the barrel can be provided for heavy duty service doors up to 144 sq ft  in limited usage applications. Only the manual crank override is visible outside the bracket. The units are available in 115 volt/single phase with constant contact one button or key switch control. They can also be provided with a low voltage controller when options such as a 3 button station, reversing edge or timer are required.

Aluminum Grille Doors

R&S Grille Doors provide access restriction without limiting visibility, light or airflow.

They’re ideal to secure parking structures and airports, protect store fronts and pharmacies, divide businesses and hallways, and many more applications.

  • Standard Duty for openings up to 16’ wide
  • Heavy Duty for openings up to 24’ wide
  • High cycle curtain construction built to last

Multiple mount options, two link patterns and a variety of finishes available to compliment any existing building.

Standard Features
  • 6″ Minimum diameter structural steel pipe barrel
  • Optional aluminum or galvanized steel hood
  • Oil tempered torsion spring on continuous cold-rolled steel shaft
  • Aluminum grille curtain (see patterns below)
  • Extruded aluminum guides & continuous steel wall angles
  • Steel plate brackets attached to wall angles
  • Extruded aluminum tubular bottom bar
Options
  • Support Tubes: Measuring 4″x4″ or 3″x3″ support tubes are attached to floor and structure above to provide mounting for grille.
  • Sloped Bottom Section: For door openings on a slope
  • Soffit Flange Cover: Measuring 5 1/2″ wide affixed to footpiece bottom is used to conceal slot required for above ceiling installations.
  • Cylinder Locks: Installed on footpiece.
  • Hood Options: Galvanized steel or aluminum sheet metal is offered.
  • Fixed Grille Panels: Offered in situations where the opening is larger than the door. A static grille curtain is supported by a frame and secures the opening beyond the rolling grille section while providing a continuity in appearance.
  • Anodized Finishes: Offered include clear, dark bronze, gold and black on curtain, footpiece, guides and hood.
  • Tubular Motor Operator: Motors completely contained within the barrel can be provided for grilles up to 200 sq ft  in limited usage applications. Only the manual crank override is visible outside the bracket. The units are available in 115 volt/single phase with constant contact one button or key switch control. They can also be provided with a low voltage controller when options such as a 3 button station, reversing edge or timer are required.
  • Emergency Egress System: Recessed pull handle is provided in a flush mounted enclosure to mechanically disconnect motor operator allowing a partial grille opening for egress.
  • Heavy Duty Option: High Cycle Construction: – Offered under certain conditions to provide up to 150,000 operating cycles.

Counter Doors

R&S offers a full line of counter doors including steel, aluminum and fire rated. Counter doors offer the same security and durability of standard steel rolling service doors with the added benefits of compact design and clean aesthetics. This combination makes counter doors extremely useful in interior applications. Most often utilized as a closure for counter openings, counter doors may also be used for openings large enough to provide walk-thru or drive-thru access.

Steel Counter Doors

R&S Steel Counter Doors combine strength and durability with compact design and neat appearance.

Although primarily utilized as a closure on counter openings, these doors may also be used on openings large enough to provide walk-thru or drive-thru access. R&S Steel Counter Doors can be modified in construction to meet steel service door requirements up to 16 feet wide, 10 feet high at a maximum of 144 square feet.

Options
  • Increased Windload Capacity: Curtain designs to withstand wind loads exceeding 20PSF.
  • High Cycle Construction: Designs to provide up to 50,000 operating cycles or maximum possible in design.
  • Vision Lites: Single or multiple 3″ wide cutouts, open for ventilation or covered with acrylic.
  • Sloped or Stepped Footpiece: To accommodate special sill conditions.
  • Cylinder Locks: Key or thumbturn cylinder lock installed on footpiece or guide for added security and convenience.
  • Galvanized Finish: Hot dip galvanizing on footpiece, guides and brackets.
  • Powder Coat Finish: Available on all exposed surfaces, powder coating is a durable and decorative finish for steel or aluminum surfaces that provides longer life and requires less maintenance than a standard finish. Powder coating is available in a variety of colors for use on many products..
  • Tubular Motor Operator: Motors completely contained within the barrel can be provided for counter doors in limited usage applications. Only the manual crank override is visible outside the bracket. The units are available in 115 volt/single phase with constant contact one button or key switch control. They can also be provided with a low voltage controller when options such as a 3 button station, reversing edge or timer are required.

Aluminum Counter Doors

R&S Aluminum Counter Doors offer compact design and attractive appearance. Anodized extruded aluminum components combine a light weight, smooth, bright finish and excellent corrosion resistance for a variety of applications.

R&S Counter Doors can be modified in construction to provide anodized aluminum service doors up to 12 feet wide, 10 feet high and a maximum of 100 square feet.

Options
  • Cylinder Locks: Key or thumbturn cylinder lock installed on footpiece or guide for added security and convenience.
  • Finish: standard clear anodized finish may be upgraded to dark bronze or black
  • Tubular Motor Operator: Motors completely contained within the barrel can be provided for counter doors in limited usage applications. Only the manual crank override is visible outside the bracket. The units are available in 115 volt/single phase with constant contact one button or key switch control. They can also be provided with a low voltage controller when options such as a 3 button station, reversing edge or timer are required.
Fire Rated Counter Doors

Visit our Fire rated Doors page to learn more about Fire Rated Counter Doors
