Dock Levelers

Pioneer Loading Dock Equipment:

Pioneer manufactures quality loading dock equipment at competitive prices. Pioneer Loading Dock Equipment has been on the market for more than twenty-five years and has proven to be a leader in the field of loading dock equipment and accessories. Pioneer products are top quality and compare favorably to all competitors. Along with a wide variety of mechanical and hydraulic Pit Levelers, Edge-of-Dock and Top-of-Dock Levelers, PIONEER also offers OSHA approved truck restraints.

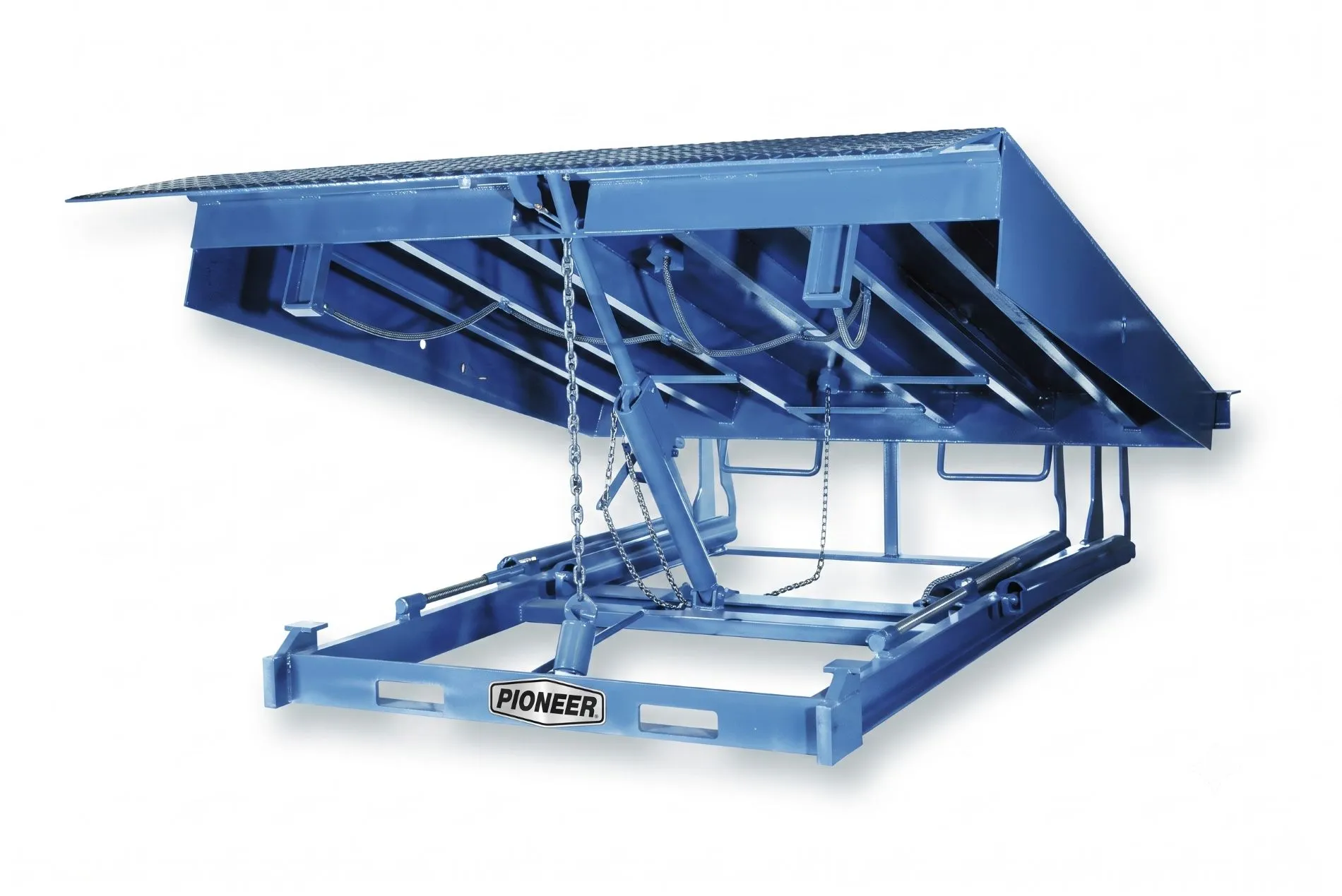

PIT LEVELERS:

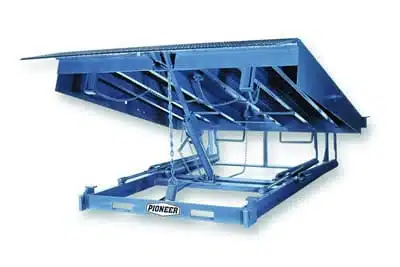

P1000, P2000 Series Mechanical Dock Levelers:

  • 55,000 pound minimum yield steel tread plate
  • Structural “C” channel deck support beams
  • Dock bumpers and grease fittings on lip hinges are standard
  • Conveniently located pull chain provides easy activation of the deck and lip
  • Direct extension spring provides easy walk down; no moving parts to wear out
  • Standard working range toe guards and grease fittings on lip hinge
  • Safety legs automatically provide multiple below dock safety points Molded bumpers protect the dock face and leveler from truck impact damage
  • 3 year warranty on all structural members and main spring (P2000)
  • 1 year warranty on all structural members and main spring (P1000)

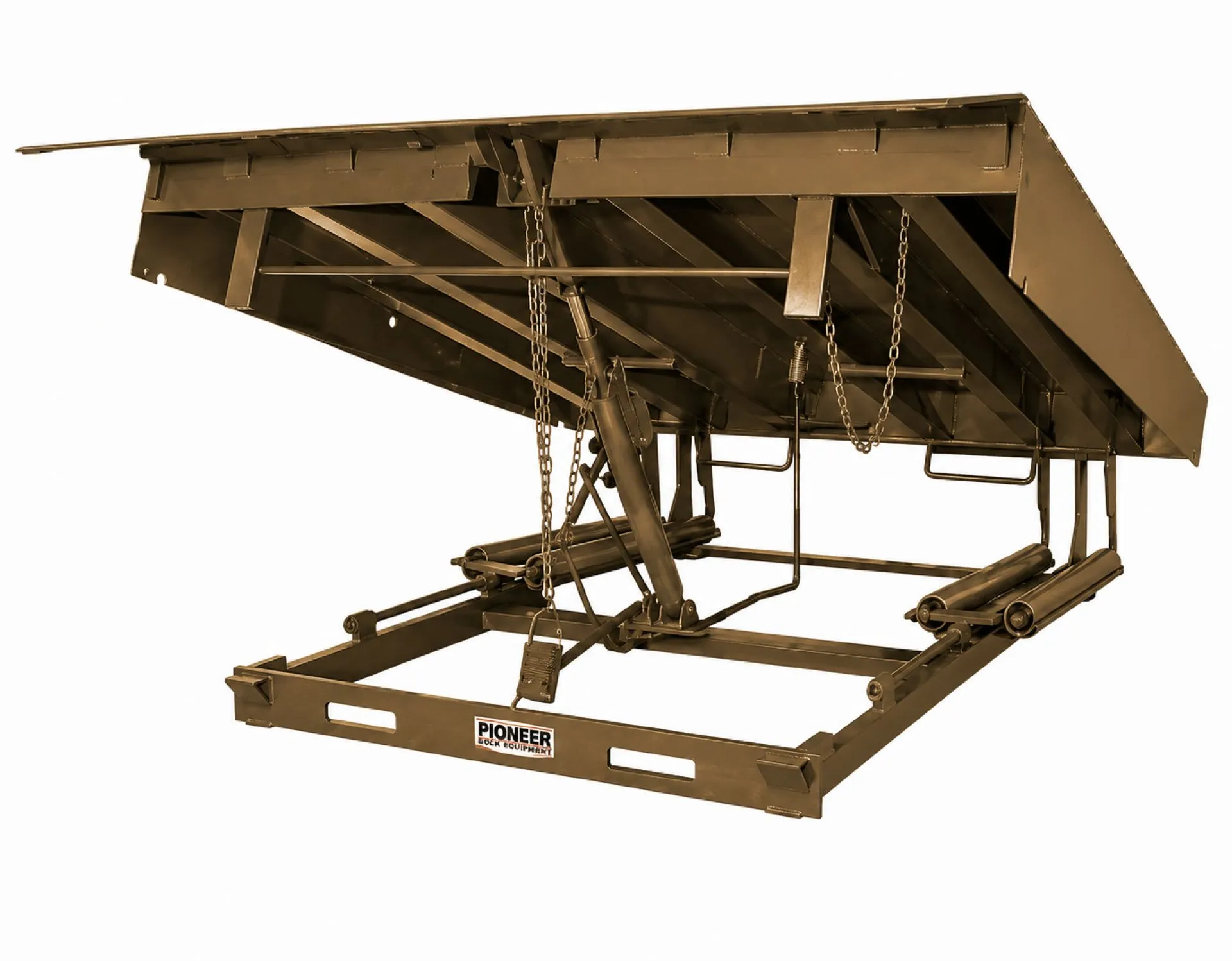

C Series Mechanical:

  • 55,000 pound minimum yield steel tread plate
  • Full length deck support beams fully welded to full width header plate
  • Positive Hold Down device compensates for vertical float of trailer
  • Conveniently located pull chain provides easy activation of the deck and lip
  • Direct extension spring provides easy walk down; no moving parts to wear out
  • Standard working range toe guards and grease fittings on lip hinge Safety legs automatically provide multiple below dock safety points
  • Molded bumpers protect the dock face and leveler from truck impact damage
  • Fixed rear hinge.
  • 1 year warranty on all structural members and main spring

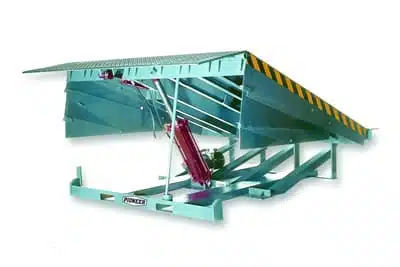

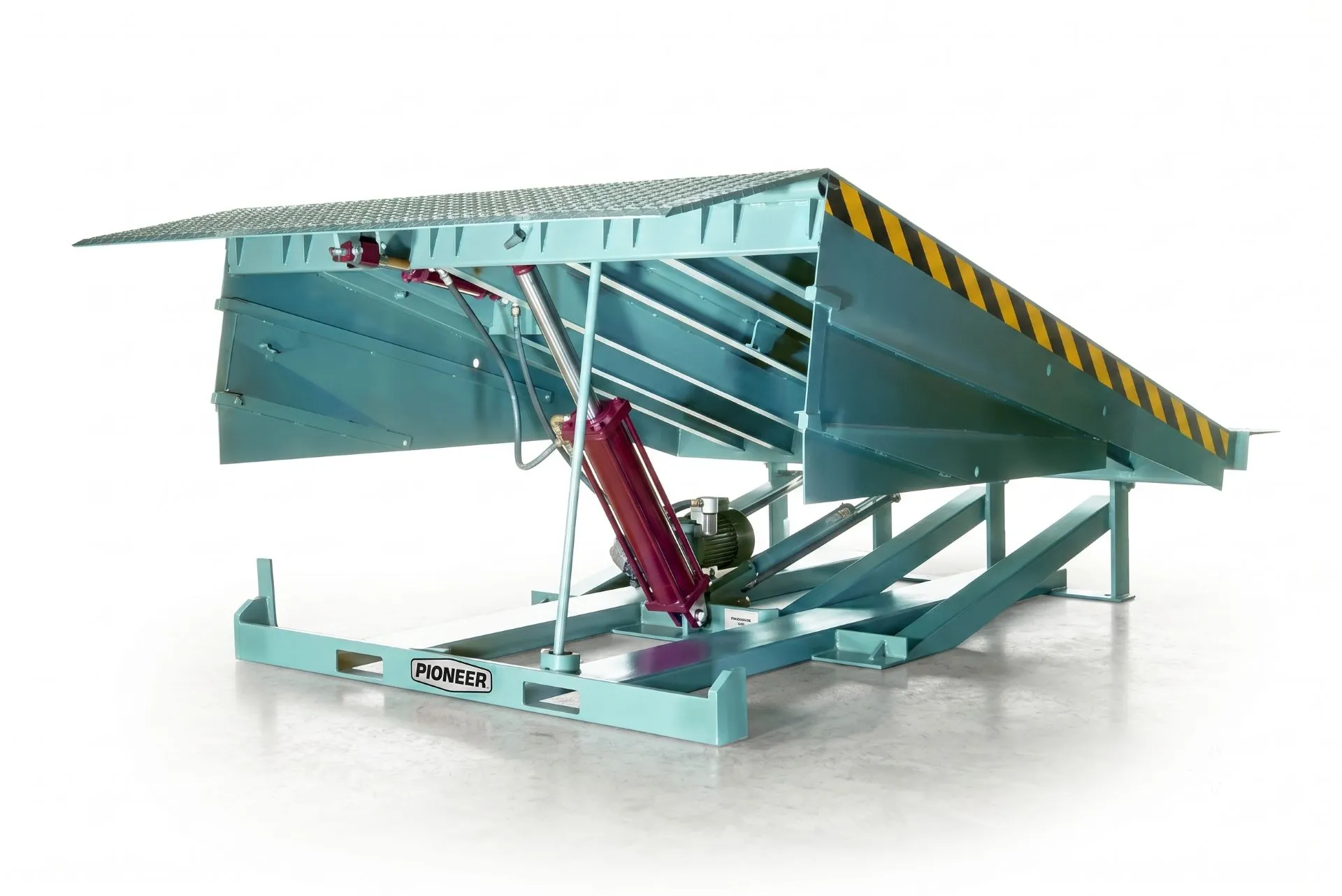

HP Series Hydraulic Dock Levelers:

    • 55,000 pound minimum yield steel tread plate

Structural “C” channel support beams

    • 20,000 – 45,000 lb. capacities

Automatic lip extension Automatic return to stored position when truck leaves

  • In-line safety stop prevents sudden fall of deck
  • Full operating range toe guards and grease fittings on lip hinge
  • 4″ diameter main lift cylinder with 2″ diameter ram
  • Molded bumpers protect the dock face and leveler from truck impact damage
  • 5 year warranty on all structural members and cylinders

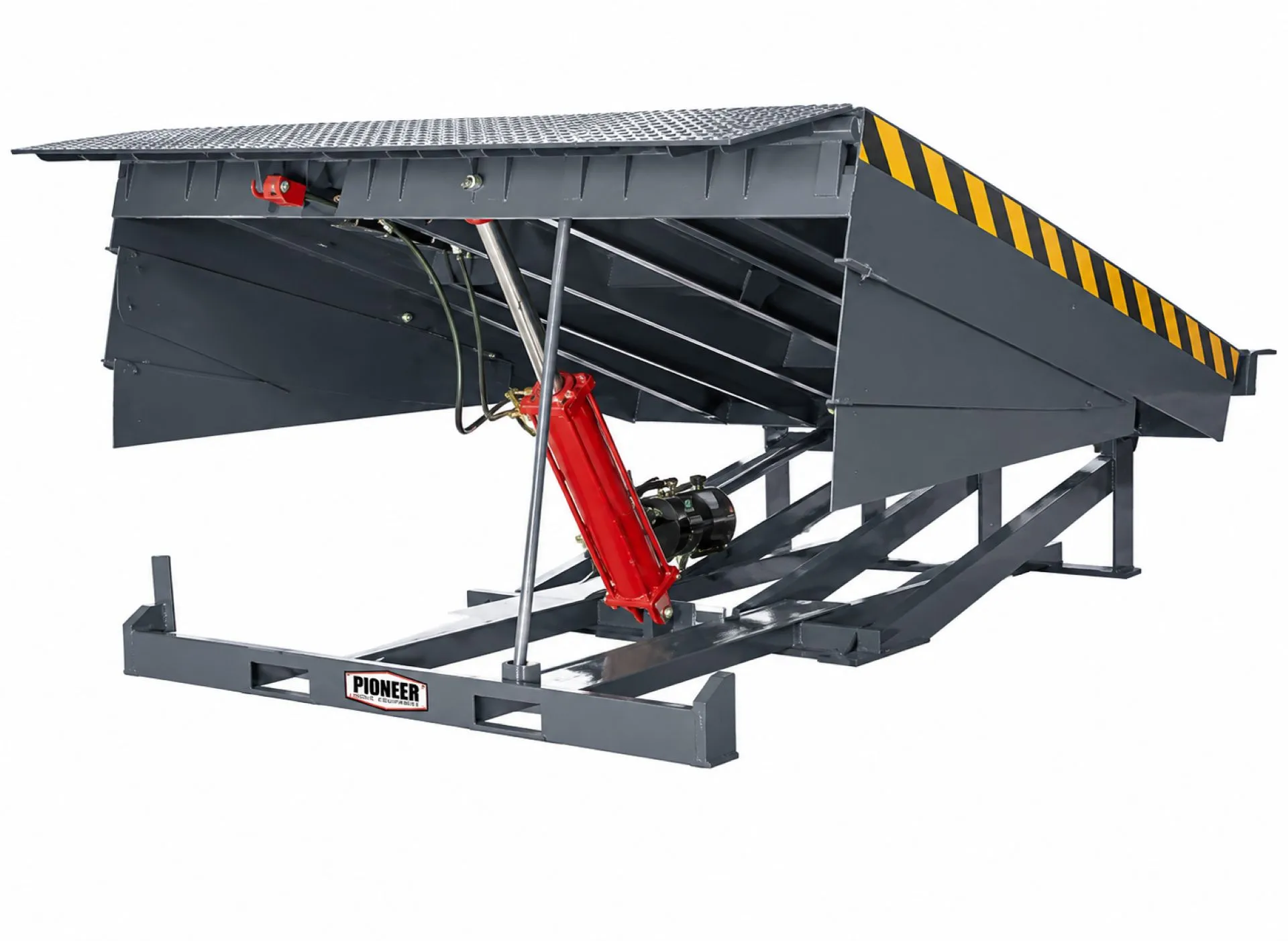

EHP Series Hydraulic Dock Levelers:

PIONEER’s new value priced EHP Series Hydraulic Leveler creates a cost effective path to migrate from mechanical to fully hydraulic pit levelers. The EHP adds hydraulic capacity to the proven features of the P2000 Series mechanical levelers. The result is a product that is just what many of our customers use to automate their loading docks.

  • 55,000 lb. Minimum yield steel tread plate on the deck and lip
  • Structural “C” channel deck supports are fully welded to full width header plate
  • Push button electric hydraulic actuation
  • In-line safety stop prevents sudden fall of deck
  • Standard working range toe guards
  • Grease fittings on lip hinge
  • Molded bumpers, two per dock leveler
  • 16″ Lip projection – 12″ beyond bumpers
  • Deck to tilt 4″ from side to side to compensate for unlevel trucks
  • Cross traffic support and night lock security to be provided by lip stored in lip keepers
  • Standard maintenance strut
  • Standard 20,000; 25,000; 30,000; 35,0000; 40,000; and 45,000 lb. dynamic capacities
  • Operating range of 12″ above to 12″ below deck
  • Leveler may be recycled with truck in position
  • Yieldable lip


SpeedTouch ST Series Pneumatic Dock Leveler:

  • Push Button Operation means no bending or pulling
  • Split second activation and easy step-down means faster operation and increased productivity
  • Operates in the event of power outage
  • Compressor can be mounted above opening, next to door, or in remote location
  • 55,000 pound minimum yield steel tread plate
  • Structural “C” channel deck support beams
  • Dock bumpers and grease fittings on lip hinges are standard
  • -Direct Extension Spring Design with no moving parts


DOCK LEVELERS:

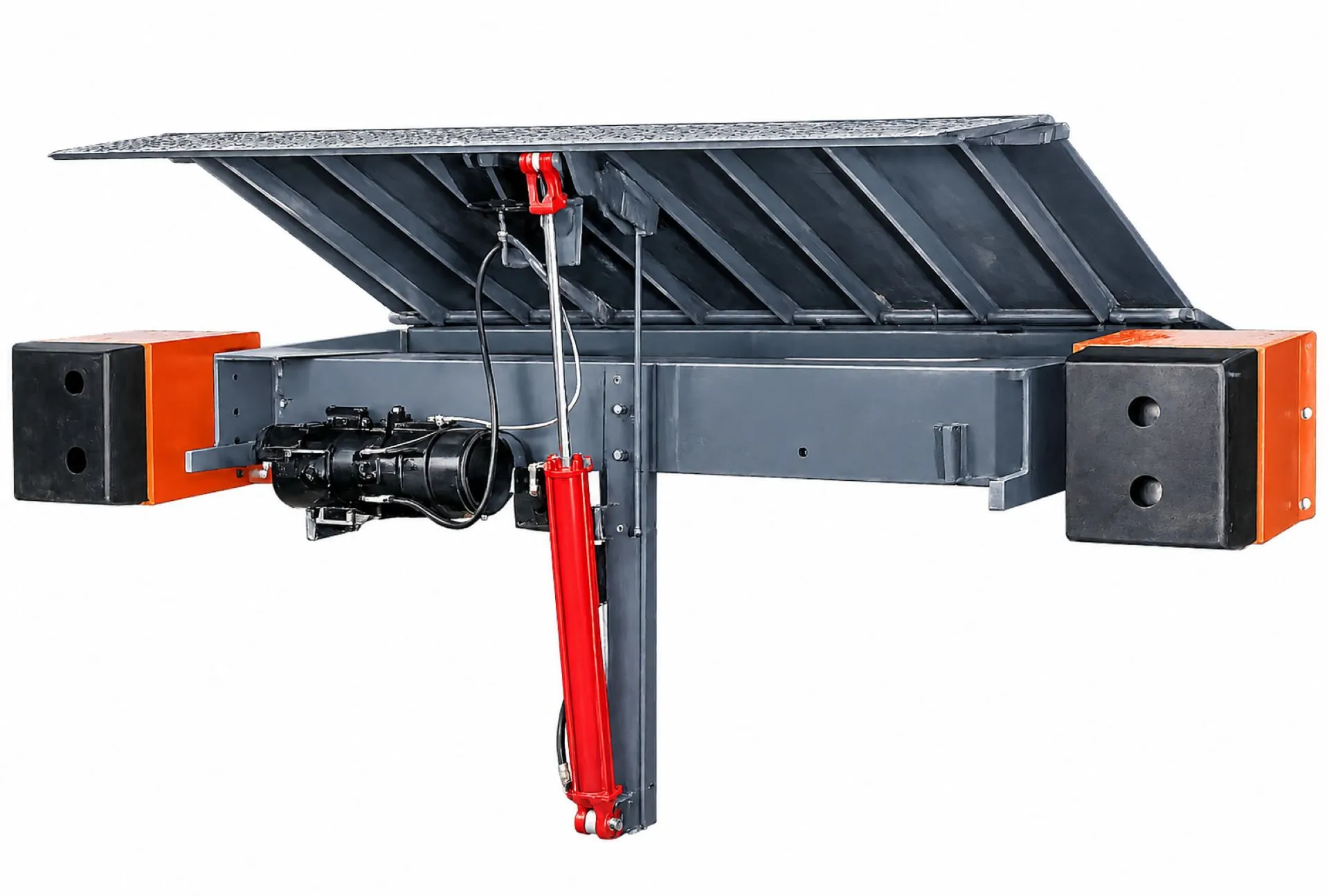

Hydraulic Top of Dock Levelers:

Perfect for retrofit situations where working range requirements exceed those provided by the Edge-of-Dock, yet there is no existing pit.

  • 20,000 to 25,000 lb. capacities
  • Working range of 10″ above and 4″ below dock
  • 2 year standard warranty (1 year on hydraulics)
  • 55,000 lb. Minimum yield safety tread plate deck
  • Mounts on top of dock with no expensive concrete work

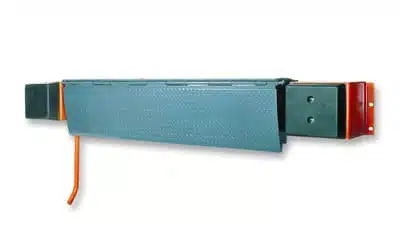

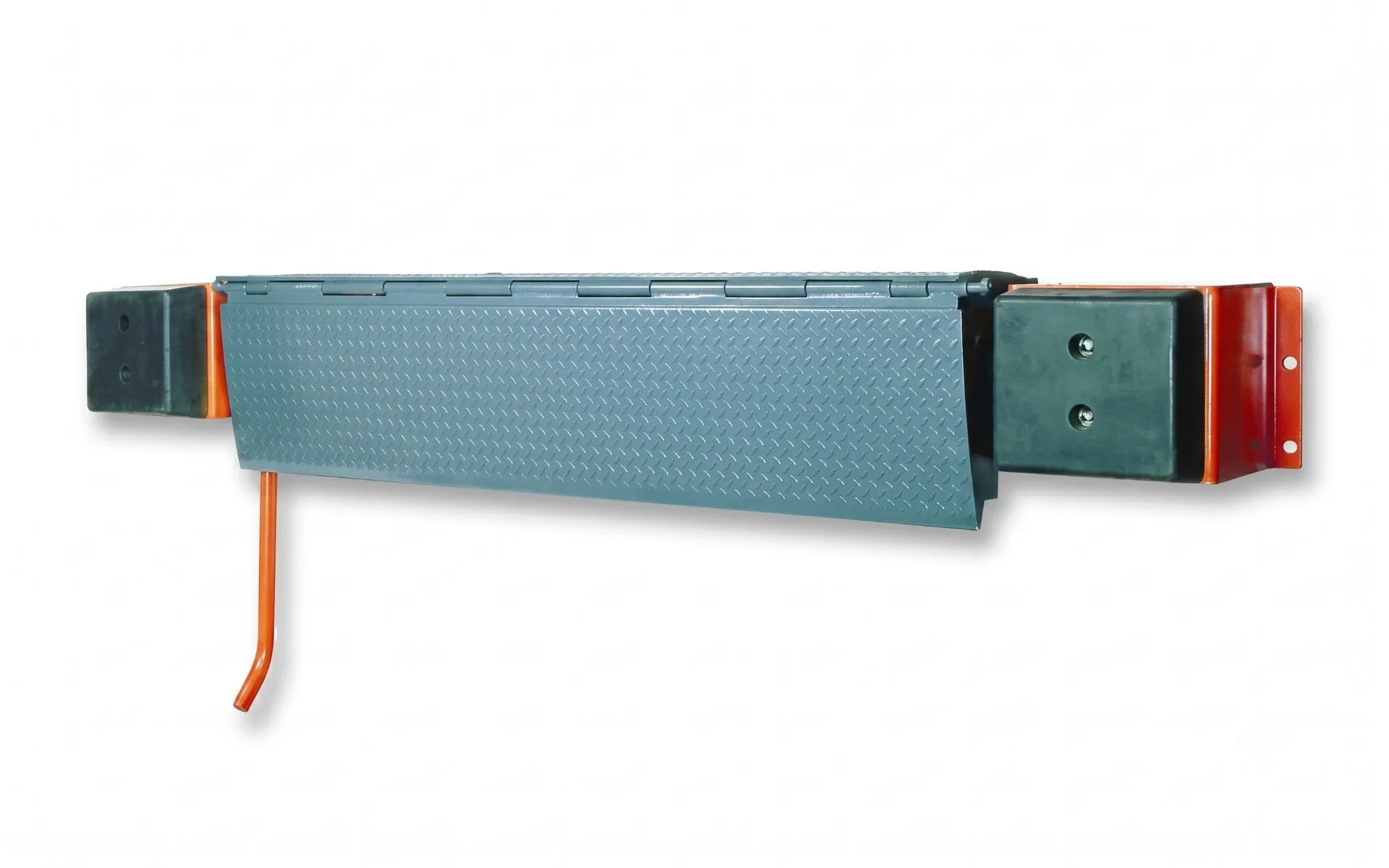

Edge of Dock Levelers:

  • 20,000 to 30,000 lb. capacities
  • 2 year standard warranty
  • 55,000 lb. Minimum yield safety tread plate deck
  • 66″, 72″, 78″ and 84″
  • Available with or without bump blocks

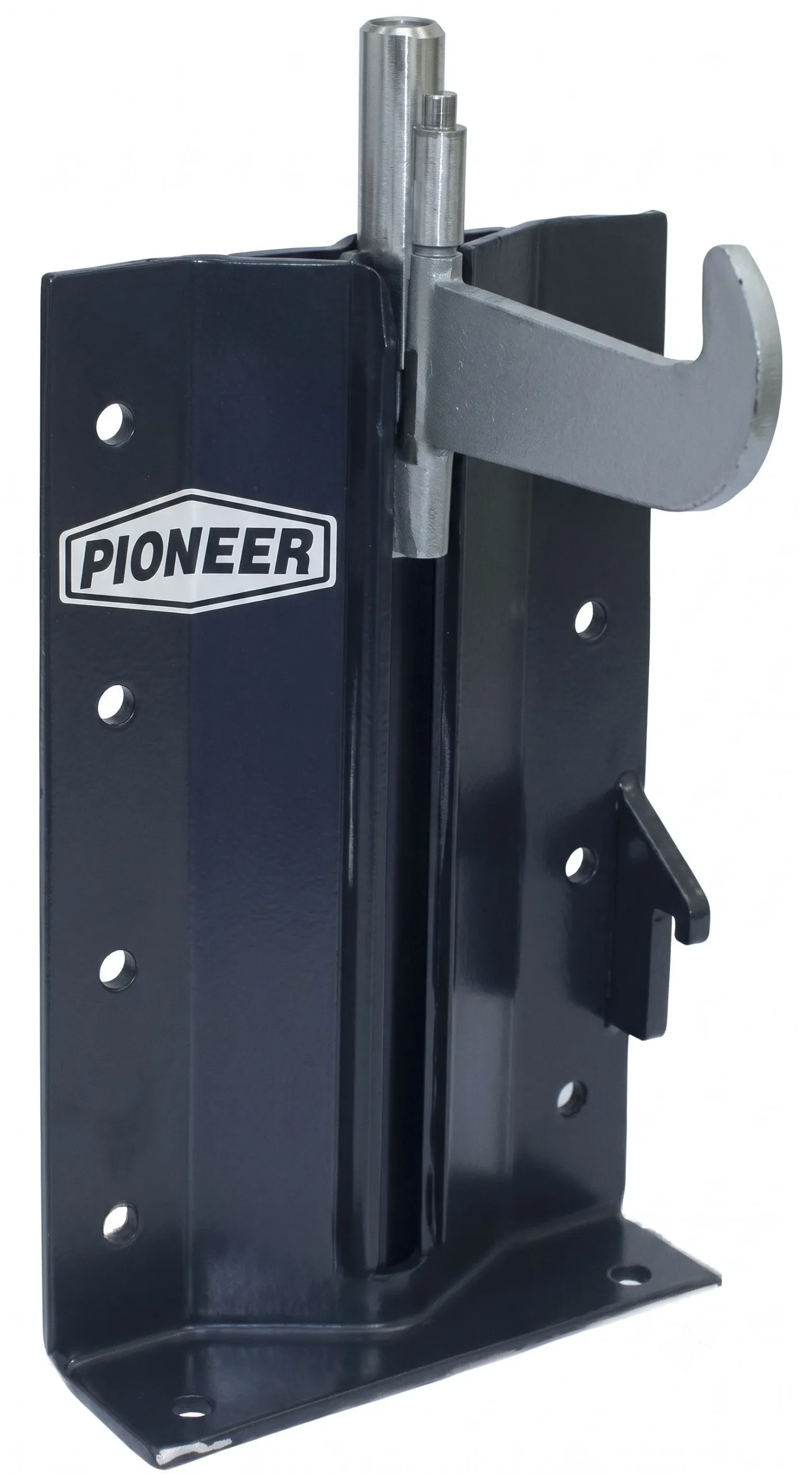

Manual Truck Restraints Also Available
