R&S offers parking control products by DoorKing. Controlling the vehicular traffic into your parking area is our specialty. Barrier arms and traffic spikes are used in areas such as down town parking lots and as secure entryways into your neighborhood. R&S provides high quality parking control products to suit any of your needs. Email us today for a free on site inspection of your secured entryway.

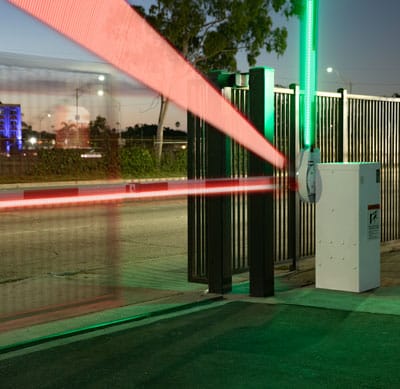

Model 1601 and 1602 Barrier Gates:
Each Include These Advanced Features:
- Magnetic limit control.
- Ports for plug-in loop detectors.
- Automatic sequencing inputs for use with slide and swing gate operators.
- Up input memory buffer.
- Down memory option.
- Multiple up commands.
- Two convenience outlets.
- 360° gear box rotation.
- Gate tracker reporting output.
- Programming switches.
- Built-in power On/Off switch.

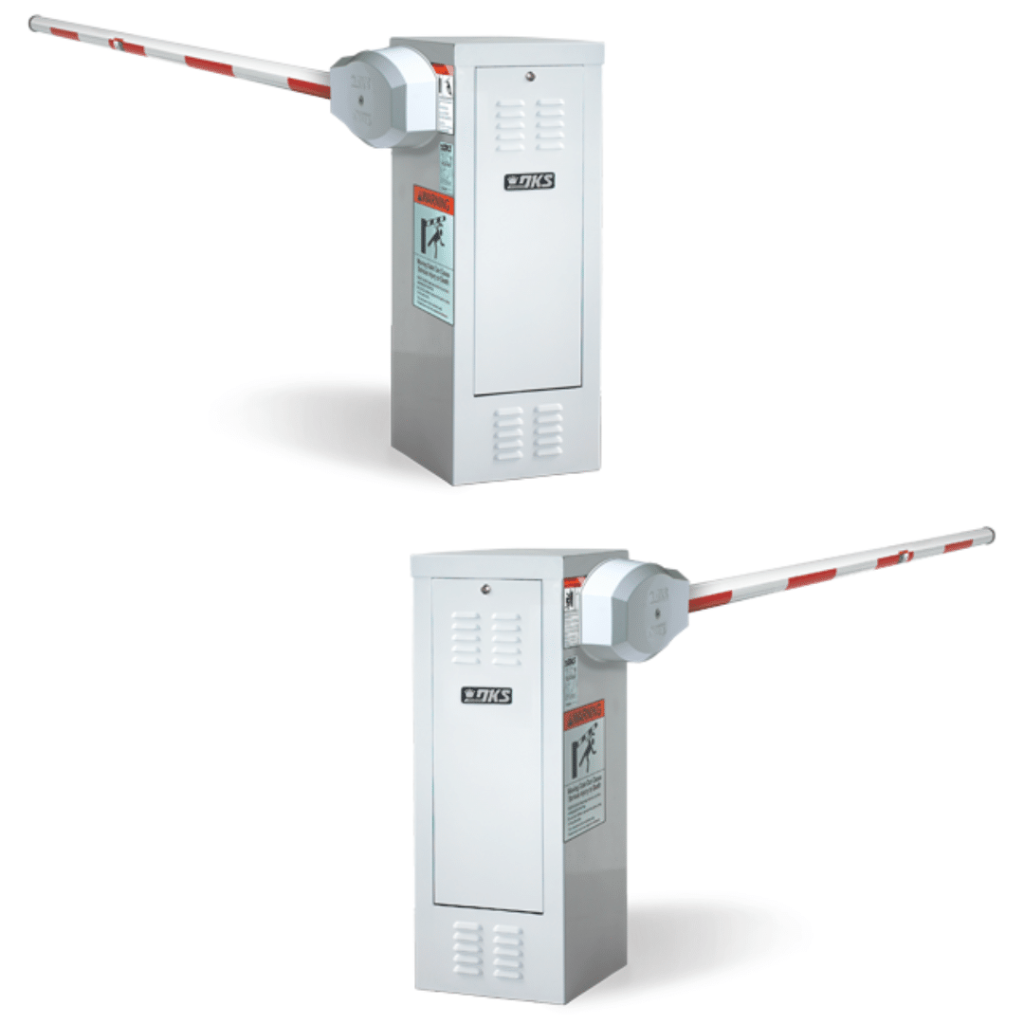

* Left or right hand mount.
Model 1601
- 1/2 HP continuous-duty motor.
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- 40:1 gear-box running in a continuous oil bath.
- Arm rotates 90° in approximately 1.5 seconds.
- Class II, III and IV applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
* Dimensions (operator only): 15.25″W x 39.75″H x 14.75″D.
Model 1602
- 1 HP continuous-duty motor.
- 60:1 gear-box running in a continuous oil bath.
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- Arm rotates 90° in approximately 5.5 seconds.
- Class III and IV applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Dimensions (operator only): 15.25″W x 39.75″H x 15.75″D.
Model 1603 and 1610 Traffic Spikes:
Model 1603
Advanced Features:
- Magnetic limit control.
- Ports for plug-in loop detectors.
- Automatic sequencing inputs for use with slide and swing gate operators.
- Up input memory buffer.
- Down memory option.
- Multiple up commands.
- Two convenience outlets.
- Gate tracker reporting output.
- Programming switches.
- Built-in power On/Off switch.
- Left or right hand mount.
Specifications:
- 1/2 HP continuous-duty motor.
- 115, 230°, 460° VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- 40:1 gear-box running in a continuous oil bath.
- Arm rotates 90° in approximately 1.5 seconds.
- Class II, III and IV applications.
- Compliant with UL 325 and 991. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Dimensions: 15.25″W x 43.75″H x 14.75″D.

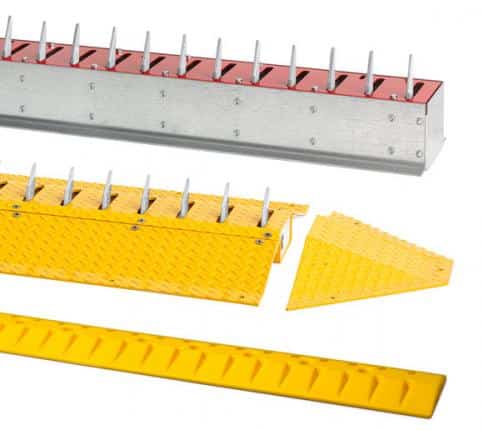

Model 1610
Flush Mount Traffic Spikes
- Individual spring loaded spikes.
- Stainless steel springs.
- Weight spikes (no springs) version available.
- Lock-down version available.
- Flush in-ground unit.
- Painted bright red for easy visibility.
- Ideal to enforce one-way traffic.

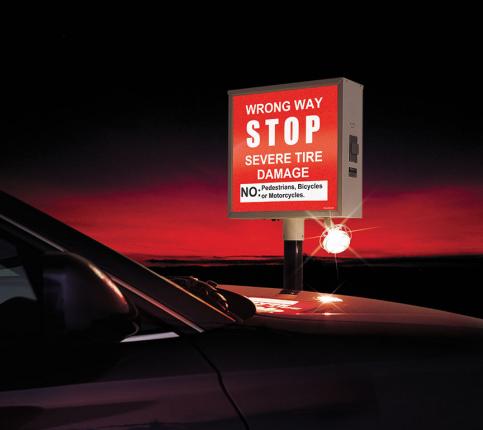

- Dimensions: 6.5″H x 12.5″W x 72″L. Warning signs must be used with traffic spikes to warn drivers that a one-way traffic lane condition exist.
- Speed bumps should always be used with traffic spikes. Speeds in excess of 5-MPH over the spikes can cause tire damage.
Surface Mount Traffic Spikes
- Spikes sections available in 3-foot sections.
- End caps provide a smooth end to the spike section.
- Torsion springs.
- Lock-down standard.
- Surface mount unit.
- 1/4-inch diamond plate painted bright yellow for easy visibility.
- 3-inch rise provides a built-in speed bump.
- Dimensions: 3″H x 31″W x 36″L. Warning signs must be used with traffic spikes to warn drivers that a one-way traffic lane condition exists.
- Speed bumps should always be used with traffic spikes. Speeds in excess of 5-MPH over the spikes can cause tire damage.
Speed Bumps
- Speed bumps are constructed from solid composite material.
- Speed bumps can be easily removed and re-installed.
- Painted bright yellow for easy visibility.
- Designed for installation on concrete surfaces only.
- Dimensions: 2″H x 11.5″W x 72″L.
