R&S services a wide range of telephone entry systems and over the years we have come to know which products are consistently reliable and give you the greatest return for your dollar. You can be assured that these systems will give you years of reliable service.

Telephone Entry – DoorKing | Linear

Digital Keypads – Door King | Linear

Telephone Entry Systems

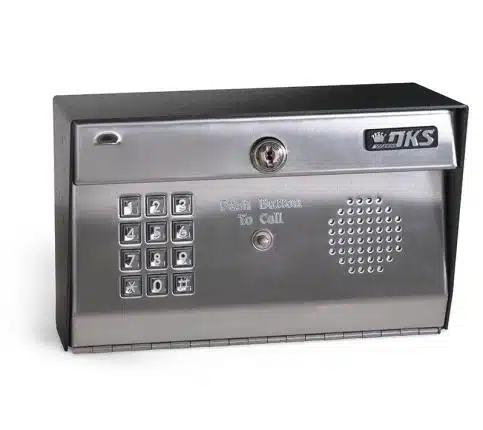

DoorKing 1812 Single Family Intercom System:

The model 1812 is a unique telephone intercom system that allows homeowners to use their telephone as an intercom to speak to a guest at a front door or gate without the necessity to pay for an additional telephone line at their home. With its “intercom mode” programming feature, the 1812 can also be connected to a PBX or KSU type system, making it ideal for small businesses to control access through a single door or gate. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. The 1812 is available in both surface and flush mount designs and includes the DKS auto-programming software for Windows, allowing homeowners to program the system right from their home computer.

The 1812 system is available in three distinct styles: Surface mount, Flush mount and Wall mount

Advanced Features:

PC Programmable.
Distinctive double ring identifies visitor calls from regular calls.
Call waiting.
Call forwarding.
3 preprogrammed call out telephone numbers.
“Do Not Disturb” time zone.
Hold open time zones.
Built-in time clock.
Entry code time zones.
“Flash” entry code.
LED lighted keypad.
2 relays for door/gate control.

Specifications:

Connects in series with the residential phone line. By-pass switch provided.
EEPROM Memory.
Stores up to 3 call forwarding numbers.
Full duplex communication.
50, 4-digit entry codes.
24 VAC, 20 VA (250 ma) power transformer provided.
FCC (US): DUF6VT-12874-OT-0
DOC (CAN): 1736 4507 A
Complies with UL 294; ETL Listed.
Surface mount dimensions: 6.25″H x 10″W x 5.25″D.
Flush mount dimensions: 9.25″H x 12″W x 4.0″D.
Wall mount dimensions: 7.325″H x 10.75″W x 3.5″D

Options:

Surface, flush or wall mount – specify which.
Stainless steel or gold plated housing (surface mount only).
Gold plated faceplate – Flush or surface mount units only.

>>1812 Brochure

DoorKing 1835 – PC Programmable:

The Model 1835 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites that have a separate access control system, or require telephone entry only. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique “One Touch” CALL button makes this system one of the easiest to use on the market today! The built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. Up to 16 card readers can be interfaced with the 1835 to provide access control. Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings. For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on your computer display (requires RS-232 connection), and with our anti-pass back memory option, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active and trap.

The 1835 is available in three distinct styles: Surface mount, Flush mount and Wall mount.

Advanced Features:

PC Programmable via modem or RS-232. Remote Account Manager and Transaction Analysis software included.
Large easy to use A and Z scroll buttons.
One Touch “CALL” button.
Built-in single-line LCD directory display.
Programmable directory codes (1-4 digits).
10 and 11-digit dialing capability.
Interfaces with 2 card readers – expandable to 16 with tracker expansion board(s)
Live transactions (requires RS-232 connection).
Anti-pass back capable (requires AP chip option).
8000 event transaction buffer.
31 Security (permission) levels.
Database import/export capability.
LED Lighted keypad.
Built-in clock/calendar.
Holiday schedule.
Hold open time zones.
Entry code time zones.
Built-in postal lock provision.

Specs:

True Full Duplex Communication.
Stores up to 3000 telephone numbers and names. Memory sizes available: 25, 75, 125, 250, 500, 1000, 2000, 3000.
Stores up to 255 area codes.
Transaction buffer stores last 8000 events.
Stores up to 8000 access card codes – dependent on system memory.
31 security (permission) levels, 29 programmable with 4 time zones each.
8 hold open time zones.
Three anti-pass back configurations: passive, active and trap (note 1)
Elevator control (note 2) for up to 4 elevators, each serving 64 floors.
Expandable (note 3) to control up to 16 entry points.
4-digit entry codes, one for each telephone number.
3 form “C” dry contact relays.
Single-line directory display uses super-twist LCD with 1/2-inch characters.
EEPROM memory.
Requires touch-tone, loop-start central office phone line.
Two 16 VAC, 20 VA power transformers supplied.
FCC (US): DUF6VT-12874-OT-T
DOC (CAN): 1736 4528 A
Compliant with UL 294. ETL listed.
Dimensions Surface Mount: 13″H x 11.25″W x 4.75″D.
Dimensions Flush Mount: 13.5″H x 12″W x 2.5″D.
Dimensions Wall Mount: 15″H x 13.25″W x 3.5″D.

Note 1: Requires APB memory option.
Note 2: Requires Elevator Control Board(s).
Note 3: Requires Tracker Expansion Board(s).

Options

Surface, flush or wall mount.
Stainless steel case (available on surface mount only).
Memory size: 25, 75, 125, 250, 500, 1000, 2000, 3000.
Memory type: standard or anti-pass back.
Tracker expansion boards.
Elevator control boards.

Available Accessories:

Surface mount trim ring (use with surface mount units only).
Flush mount installation kit (required with flush mount units).
ADA compliant handset.
Fluorescent light kit.
Back up battery.
Heater kit (recommended when temperatures routinely fall below 10F / -12C).
Color or BW CCTV camera (may require additional CCTV equipment).
Surge suppressors.

>>1835 Brochure

DoorKing 1837 – PC Programmable:

The Model 1837 is an ideal telephone entry and access control system suited for medium to large apartment and gated community applications as well as office buildings and industrial sites. The eight-line LCD display features big 1/2-inch characters for easy viewing and your personalized message appears on the screen when the system is not in use. Our unique “One Touch” CALL button makes this system one of the easiest to use on the market today! The built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. Up to 16 card readers can be interfaced with the 1837 to provide access control. Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings. For additional security, the 1837 allows you to monitor activity AS IT HAPPENS on your computer display (requires RS-232 connection), and with our anti-pass back memory option, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active and trap.

The 1837 is available in three distinct styles: Surface mount, Flush mount and Wall mount.
Advanced Features:

PC Programmable via modem or RS-232. Remote Account Manager and Transaction Analysis software included.
Large easy to use A and Z scroll buttons.
One Touch “CALL” button.
Built-in eight-line LCD directory display.
Programmable directory codes (1-4 digits).
10 and 11-digit dialing capability.
Interfaces with 2 card readers – expandable to 16 with tracker expansion board(s)
Live transactions (requires RS-232 connection).
Anti-pass back capable (requires AP chip option).
8000 event transaction buffer.
Elevator control – requires elevator control boards(s)
31 Security (permission) levels.
Database import/export capability.
LED Lighted keypad.
Built-in clock/calendar.
Holiday schedule.
Hold open time zones.
Entry code time zones.
Built-in postal lock provision.

Specifications:

True Full Duplex communication.
Stores up to 3000 telephone numbers and names. Memory sizes available: 25, 75, 125, 250, 500, 1000, 2000, 3000.
Transaction buffer stores last 8000 events.
Stores up to 8000 access card codes – dependent on system memory.
31 security (permission) levels, 29 programmable with 4 time zones each.
8 hold open time zones.
Three anti-pass back configurations: passive, active and trap (note 1)
Elevator control (note 2) for up to 4 elevators, each serving 64 floors.
Expandable (note 3) to control up to 16 entry points.
4-digit entry codes, one for each telephone number.
3 form “C” dry contact relays.
Eight-line directory display uses super-twist LCD with 1/2-inch characters.
EEPROM memory.
Requires touch-tone, loop-start central office phone line.
16 VAC, 20 VA and 16 VAC, 50 VA power transformers supplied.
FCC (US): DUF6VT-12874-OT-T
DOC (CAN): 1736 4528 A
Compliant with UL 294. ETL listed.
Dimensions Surface Mount: 13″H x 11.25″W x 4.75″D.
Dimensions Flush Mount: 13.5″H x 12″W x 2.5″D.
Dimensions Wall Mount: 15″H x 13.25″W x 3.5″D.

Note 1: Requires APB memory option.
Note 2: Requires Elevator Control Board(s).
Note 3: Requires Tracker Expansion Board(s).

Options:

Surface, flush or wall mount
Stainless steel case (available on surface mount only).
Memory size: 25, 75, 125, 250, 500, 1000, 2000, 3000.
Memory type: standard or anti-pass back.
Tracker expansion boards.
Elevator control boards.

Available Accessories:

Surface mount trim ring (use with surface mount units only)
Flush mount installation kit (required with flush mount units).
ADA compliant handset.
Fluorescent light kit.
Back up battery.
Heater kit (recommended when temperatures routinely fall below 10F / -12C).
Color or BW CCTV camera (may require additional CCTV equipment).
Surge suppressors.

>>1837 Brochure

Linear Telephone Entry Systems:

R&S also services and installs Telephone Entry systems by Linear. Linear is one of the leading manufacturer’s of access control systems.

Click On One Of The Following To View Detailed Brochure:

Digital Keypad Systems

DoorKing:

Door or gate access using four digit entry codes.

Model 1503 low cost, will store (2) four digit codes.
Model 1504 can add a speaker and push button for intercom.
Model 1506 can store up to 1000 codes, a slave keypad may be added, allows control to two separate access points.

Radio Frequency Control

High security remote transmitter gate control.
1 to 1 million codes available
Model 8057 can store up to 16,000 individual transmitter codes. Ideal stand alone.
Model 8059 provides format to interface with an access control system.

Linear:

Model AK-11, exterior surface or gooseneck mount system holds up to 480 entry codes
Model AK-2, interior flush mount system holds up to 480 entry codes
AK-21W, weather-resistant flush mount system holds up to 480 entry codes
AK-31, low cost interior flush mount system holds up to 480 entry codes
AKR-1, exterior surface or gooseneck mount system holds up to 480 entry codes and 480 block coded transmitters that work with it’s built in receiver
