DOORS. DOCKS. GATES. & MORE

Automatic Gate Operators

The most reliable products for a hassle-free life.

R&S installs and services a wide range of gate operators. Over the years, we have come to know which products are consistently reliable and give you the greatest return for your dollar. You can be assured that these gate operators will give you years of reliable service. Email us today for a free on site inspection of your gate system!

Manufacturers R&S installs & serviceS:

Swing Gate Operators

Slide Gate Operators

HD Gate Operators

Underground Gate Operators

Overhead Gate Operators

Barrier Gate Operators

Swing Gate Operators

Keep traffic flowing and properties secure with LiftMaster’s commercial and residential swing gate operators. Smart and powerful, these operators can handle any demand out there.

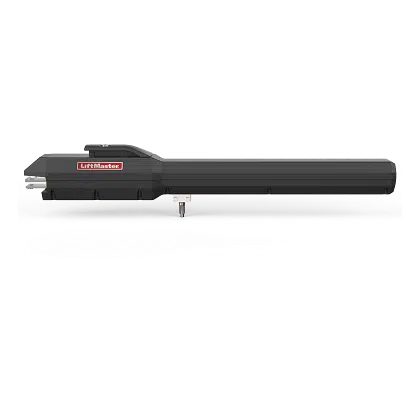

LiftMaster LA500UL

24VDC Residential/Light Commercial Linear Actuator

Rated for gates up to 18ft. or 1,600 lbs.
Battery Back Up Included
Soft start/stop operation
Warranty: 2 years

LiftMaster CSW24UL

24VDC High-Traffic Commercial Swing Gate Operator

Ideal for high-traffic, heavy-duty application.
Provides battery back-up when the power is down.
Rated For gates up to 18ft. or 1,600 lbs.
Warranty: 7 years residential, 5 years commercial

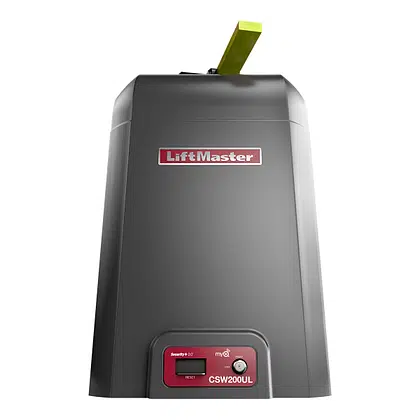

LiftMaster CSW200UL

1/2 and 1 HP AC High Traffic Commercial Swing Gate Operators

For high-traffic applications.
Ideal for large gated communities or commercial facilities.
1/2 HP rated for gates 18ft or 1,600 lbs.
1 HP rated for gates 22ft or 2,000 lbs.
Warranty: 7 years residential, 5 years commercial

Slide Gate Operators

Minimizing space and maximizing performance, LiftMaster’s commercial and residential slide gate operators sit flush to the fence line to offer precise, powerful gate control.

LiftMaster RSL12UL

Residential / Light Commercial Slide Gate Operator

Battery Backup.
Rated for gates up to 25ft. and 800 lbs.
Warranty: 3 Years

LiftMaster CSL24UL

24VDC High-Traffic Commercial Slide Gate Operator

Ideal for high-traffic, heavy-duty application.
Battery back up feature is good for up to 208 cycles or 24 days
Rated for gates up to 50ft. and 1,500 lbs.
Warranty: 7 years residential, 5 years commercial

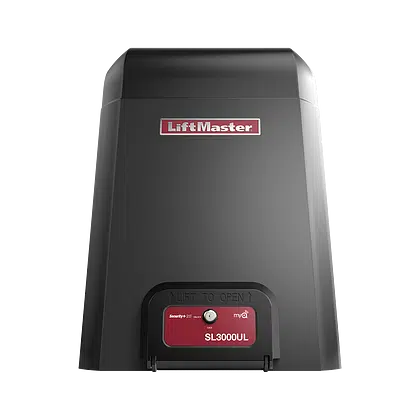

LiftMaster SL3000UL

1/2 and 1 HP AC High Traffic Commercial Slide Gate Operators

Ideal for heavy-traffic applications
1/2 HP rated for gates 50ft and 1,000 lbs.
1 HP rated for gates 50ft and 2,000 lbs.
Warranty: 7 years residential, 5 years commercial

Heavy Duty & Industrial Gate Operators

The new LiftMaster line of Heavy-Duty Gate and Industrial Slide Gates Operators can move the heaviest industrial gates without breaking a sweat. How heavy is heavy duty? You’ll have to see for yourself.

Heavy Duty Swing Gates

LiftMaster HDSW24UL

24VDC Heavy-Duty Variable Speed Swing Gate Operator

Ideal for heavy gate and extreme applications.
Rated for gates up to 22 ft. or up to 2,800 lbs, 4,500 lbs. with optional arm.
Variable cycle speed of 13 – 36 sec for a 90 degree opening.
Warranty: 7 years residential, 5 years commercial

Heavy Duty & Industrial Slide Gates

LiftMaster HDSL24UL

24VDC Heavy-Duty Variable Speed Slide Gate Operator

Ideal for heavy gate and extreme applications.
Rated for gates up to 75 ft. and 3,000 lbs.
Variable cycle speed of .5 ft./sec. to 1 ft./sec.
Warranty: 7 years residential, 5 years commercial

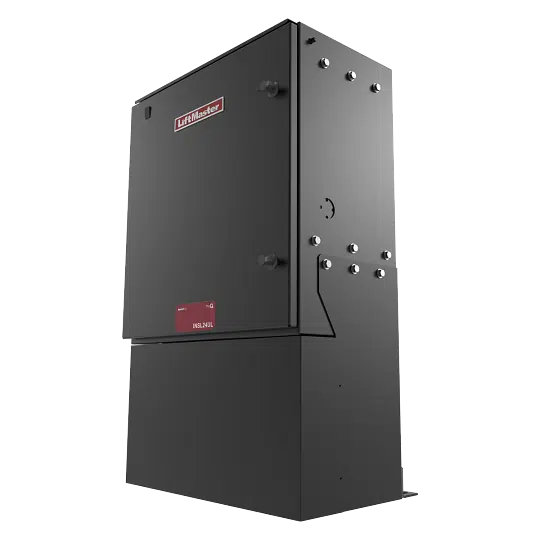

LiftMaster INSL24UL

24VDC Continuous Duty Industrial Slide Gate Operator

Continuous Duty BLDC Industrial Operator
Rated for heavy gates up to 2200 lbs. and 70 ft.
Battery Backup with Variable Speed
Easy retrofit in place of SL585 or SL595. There is no new concrete to pour and no new wiring required.
Soft Start and Soft Stop Technology
Warranty: 5 years commercial

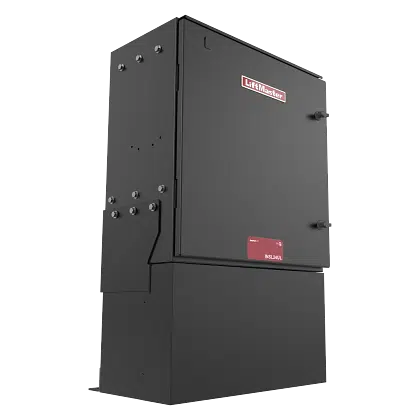

LiftMaster IHSL24UL

Heavy-Duty Industrial Slide Gate Operator

Continuous Duty BLDC Industrial Operator.
Rated for extreme slide gates up to 5500 lbs. and 90 ft.
Battery Backup with Variable Speed.
Easy retrofit in place of SL585 or SL595. There is no new concrete to pour and no new wiring required.
Soft Start and Soft Stop Technology.
Warranty: 5 years commercial

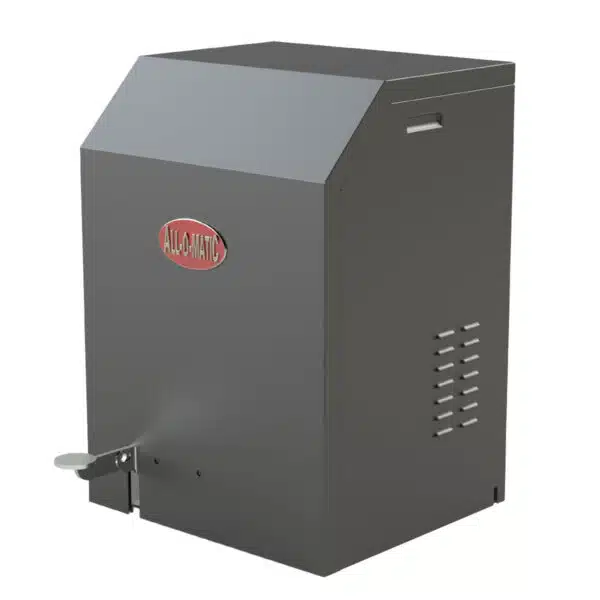

All-O-Matic SL-175 DC

Super duty high-strength frame, super duty gearbox, 36VDC brushless DC motor
Optional speed of 12” or 24” per second
Soft start/stop
Built in loop rack
Integrated battery backup
Solar power ready and foot pedal release.
Tested with gates weighting up to 8,000 lbs. and 75 feet in length.
100 Ft. – Max Gate Length
8,000 lbs. (12” per second) – Max Gate Weight
3,000 lbs. (24” per second) – Max Gate Weight
Warranty: 5 years commercial

Underground Gate Operators

Automatic and invisible: combine practicality and aesthetics with a FAAC underground gate operator! This solution is ideal for automating heavy gates were the visual impact must be protected.

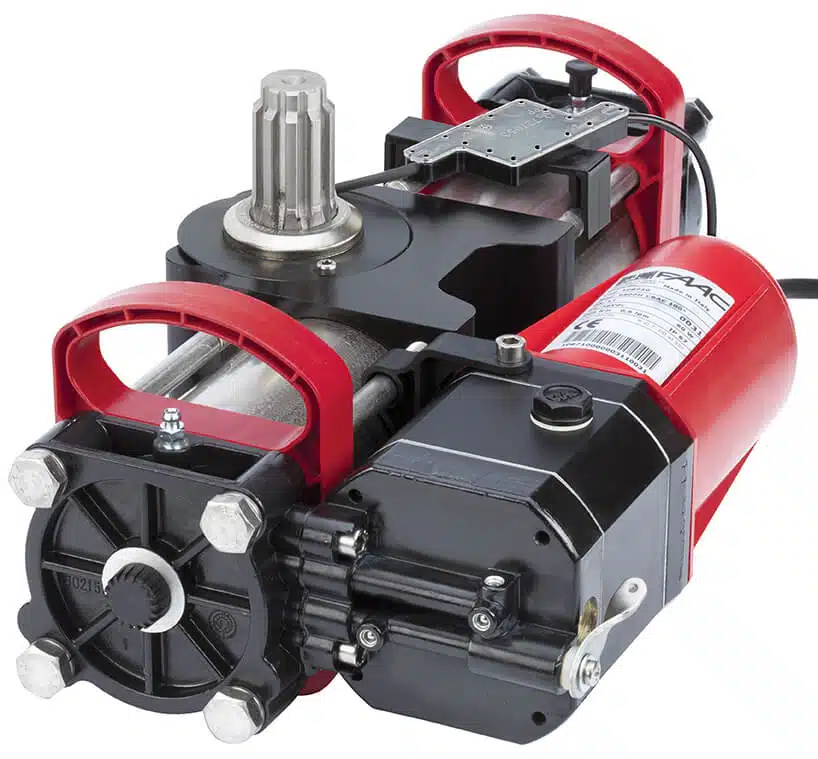

FAAC S800H

24V Underground Hydraulic Operator for Residential and Condo Swing Gates

Continuous use
Max weight of leaf: 1,760 lbs. (800kg)
Max width of leaf: 13 ft. (4m)
Maximum anti-crushing safety and reverse function on obstacle thanks to the magnetic encoder.
Built-in positive stops.
HYBRID technology – combines the advantages of hydraulic technology with that of 24V: sturdiness, high performance, reliability over time, speed control.
Built-in handles for ease of handling and installation.
Warranty: 3 years

Overhead Gate Operators

Ideal for multi-unit residential parking facilities: low profile design, exceptionally quiet and smooth operation and unsurpassed reliability for tilt-up gates and overhead doors.

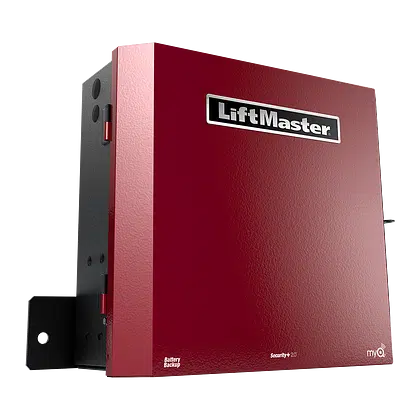

LiftMaster HCTDCUL

Specialty Overhead Operator

Engineered to increase uptime and provide powerful, reliable performance
Noise-isolating design provides for exceptionally smooth and quiet operation.
Selectable speed control opens up to 11″ inches per second to keep traffic flowing.
Warranty: 3 years

Barrier Gate Operators

Commercial barrier gate operators are essential for managing vehicle flow safely and efficiently. R&S offers solutions for high traffic and low traffic applications.

DoorKing 1601

High Usage Single Lane Traffic Control

Designed for single lane (14 ft maximum) vehicular control in high traffic applications
Electronic Limit Settings
Operators are designed so that they can be mounted on either the left or right hand side of the roadway
Lighted and Breakaway Arm Kits available. Low headroom Folding Arm Kits also available
Pedestrian Protection System available
Available in white or gun metal gray finish.
Warranty: 5 years

DoorKing 1602

Traffic Control Barrier Options That Fit Any Application

Designed to control wide traffic lanes (27 feet maximum) in limited use applications
Suitable for low-cycle applications to restricted access areas such as prisons, airport security areas or industrial sites
Electronic limit settings
Three-piece aluminum arms available in 20, 24 and 27 foot lengths
Pedestrian Protection System
Warranty: 5 years

LiftMaster MA & MAS

Mega Arm High Performance & Mega Arm Sprint High-Speed Commercial DC Barrier Gates

MA: Rated for 6000 cycles per day with an opening speed of 2.5 seconds.
MAS: Rated for 10,000 cycles per day with an opening speed of 0.9 seconds (arms available in 8ft length only.)
Battery Backup keeps operator running and traffic moving even when power is down.
Cabinet Warranty: 10 years
Electronic and Mechanical Components Warranty: 2 years

Brochure High Performance

Brochure High Speed

LiftMaster MAT & MAST

Mega Arm Tower High Performance & Mega Arm Sprint Tower High-Speed Commercial DC Barrier Gates

MAT: Rated for 6000 cycles per day with an opening speed of 2.5 seconds.
MAST: Rated for 10,000 cycles per day with an opening speed of 0.9 seconds (arms available in 8ft length only.)
Battery Backup keeps operator running and traffic moving even when power is down.
Cabinet Warranty: 10 years
Electronic and Mechanical Components Warranty: 2 years

Brochure High Performance

Brochure High Speed
